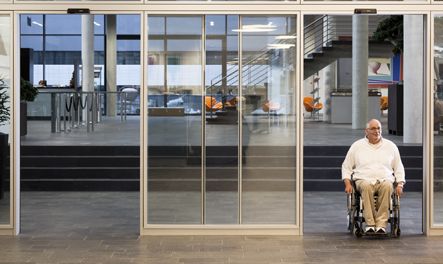

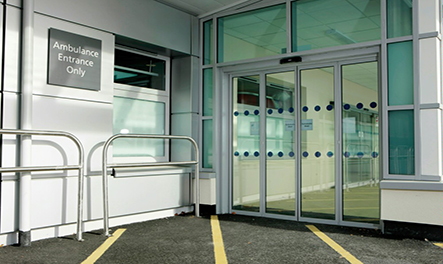

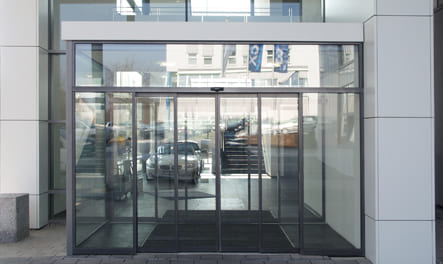

Sliding door systems for convenience and perfection

  • Sliding doors are space-saving, elegant and modern. Glass sliding doors are ideal when it comes to making good use of daylight and fulfilling optical criteria. The automatic sliding doors from GEZE can be used to implement the widest range of application requirements within a building.
  • The Sliding Door System ECdrive is economical and extremely reliable in its functionality.
  • The Sliding Door System Powerdrive is a real power package and is capable of moving heavy doors conveniently and safely.
  • For the reliable locking and unlocking of automatic sliding door systems, GEZE offers different locking solutions depending on the security requirements and operating convenience.
Automatic Sliding Door SystemsSlimdriveECdrivePowerdrive
Dimensions [mm]
(height x depth)
70 x 189120x175
150x175
150 x 185 /
200 x 185
Opening width [mm]
1 leaf / 2 leaf
700 – 3000 /
900 – 3000
700 – 3000 /
900 – 3000
700 – 3000 /
800 – 3000
Max. leaf weight [kg]
1 leaf / 2 leaf
1x 120 /
2x 120
1x 120 /
2x 120
1x 200* /
2x180* or 200**
Max. speed [m/s]
Opening / Closing
0,7 / 0,50,7 / 0,50,7 / 0,5
Variants
Standard
FR
CO48
Break-Out
Smoke proof
Hermetic
Telescope
Folding door
yesno optional
